PRODUCT BROCHURE

Acoustic Felt Panel

ÜNO Board

design with intent.

ÜNO Board — 100% PET Acoustic Panel

ÜNO Board redefines acoustic performance for the modern interior. Engineered from 100% polyester felt with up to 70% post-consumer recycled content, it delivers measurable sound absorption without compromising the visual language of your space.

0.40 – 1.05*

NRC

30+

Colours available

70%

Recycled content

5

Year warranty

Why ÜNO Board

Acoustic precision

NRC values from 0.40 to 1.05 across seven configurations — from slim 9 mm panels to high-performance 24 mm laminates.

Material integrity

Zero formaldehyde. Zero harmful VOCs. RoHS and REACH SVHC compliant. Third-party verified by Intertek and SGS.

Circular by design

Up to 70% post-consumer recycled PET. Fully recyclable at end of life. Contributes to LEED v4/v4.1 credits.

Design freedom

30+ designer colours. Factory precision cutting to any dimension. Smooth or textured surface finish.

Performance Overview

Every decibel counted.

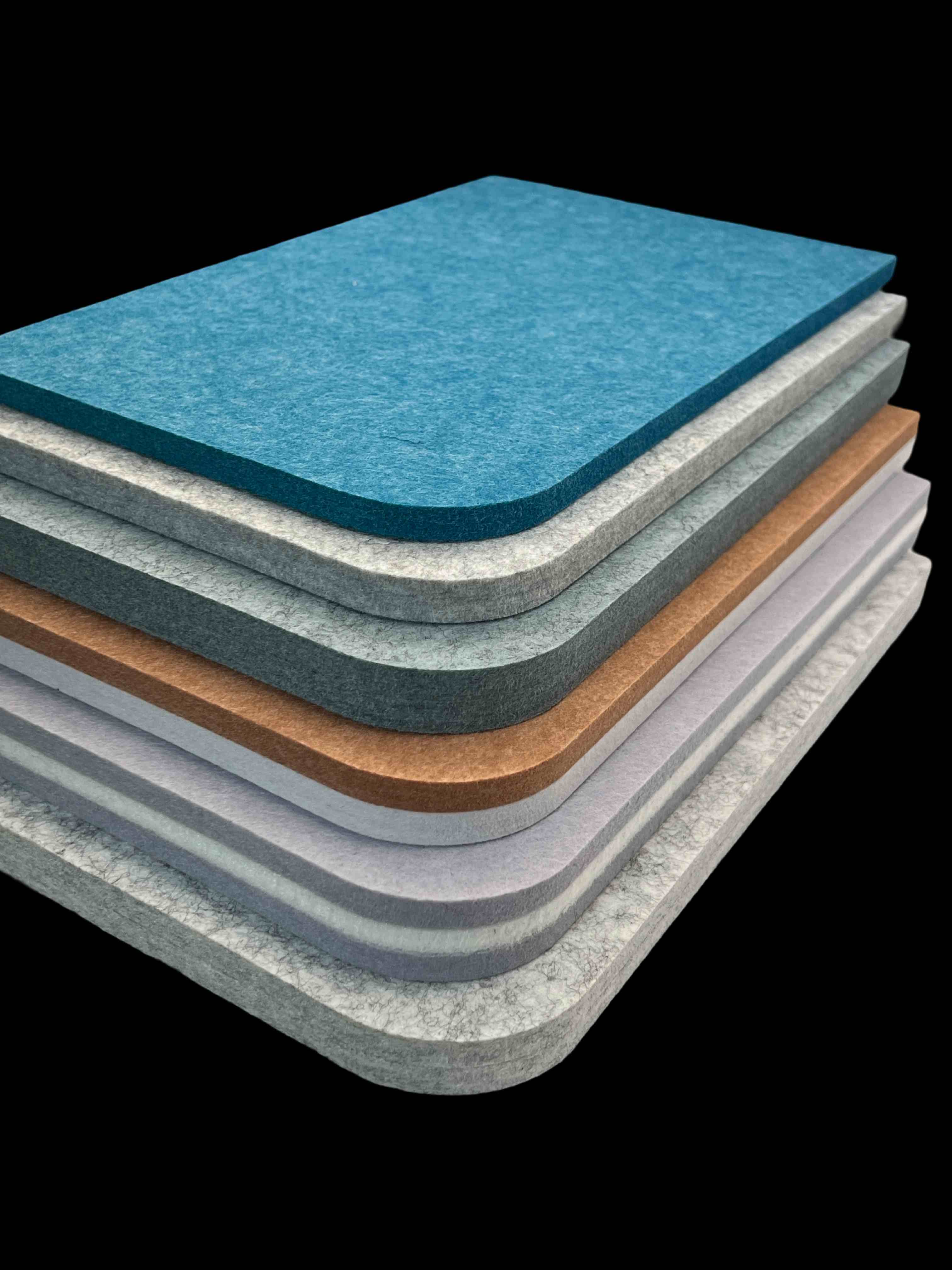

Stacked ÜNO Board acoustic panels in multiple colours

Configurations

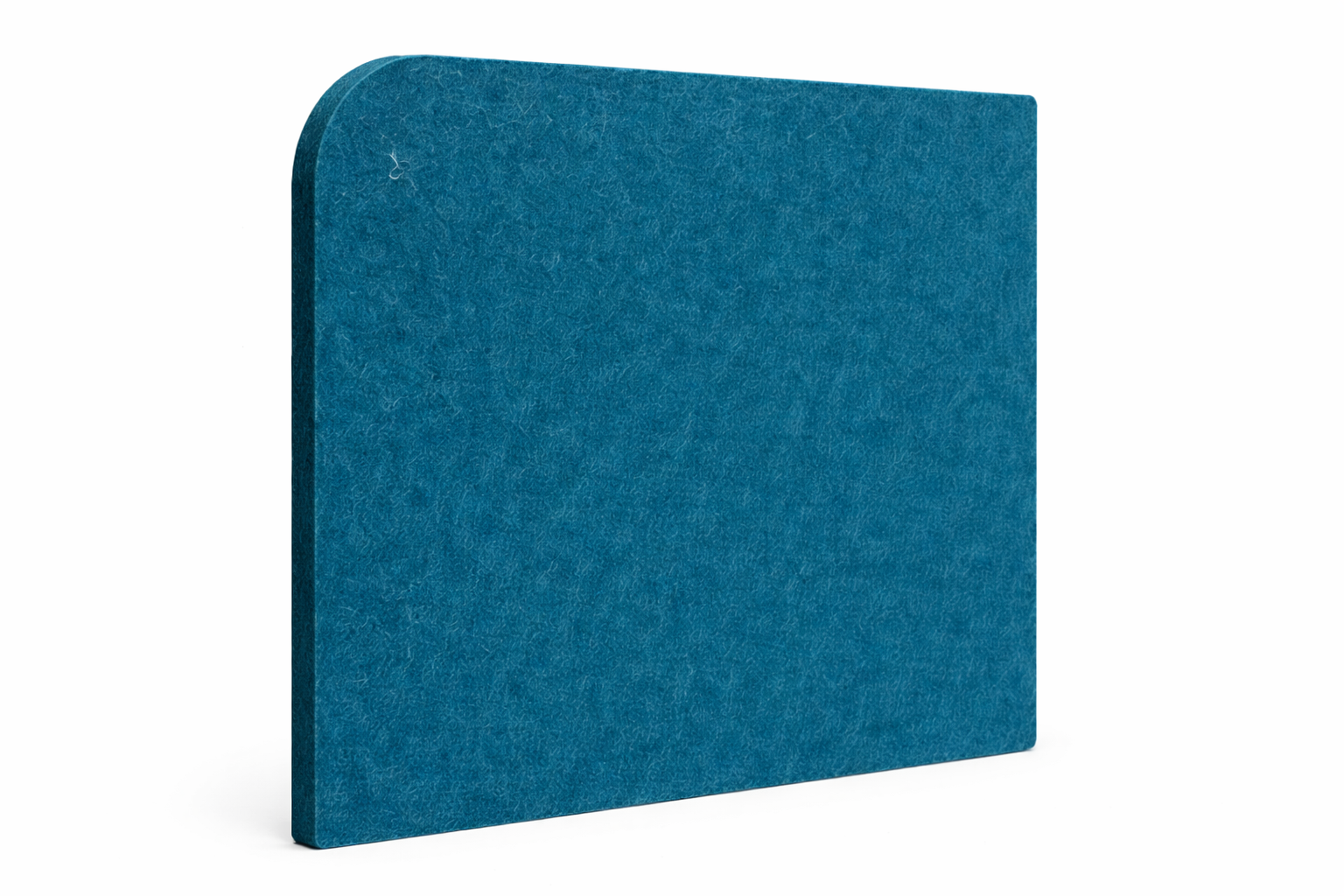

ÜNO Concept 9

9 mm0.40

Feature walls, light acoustic treatment

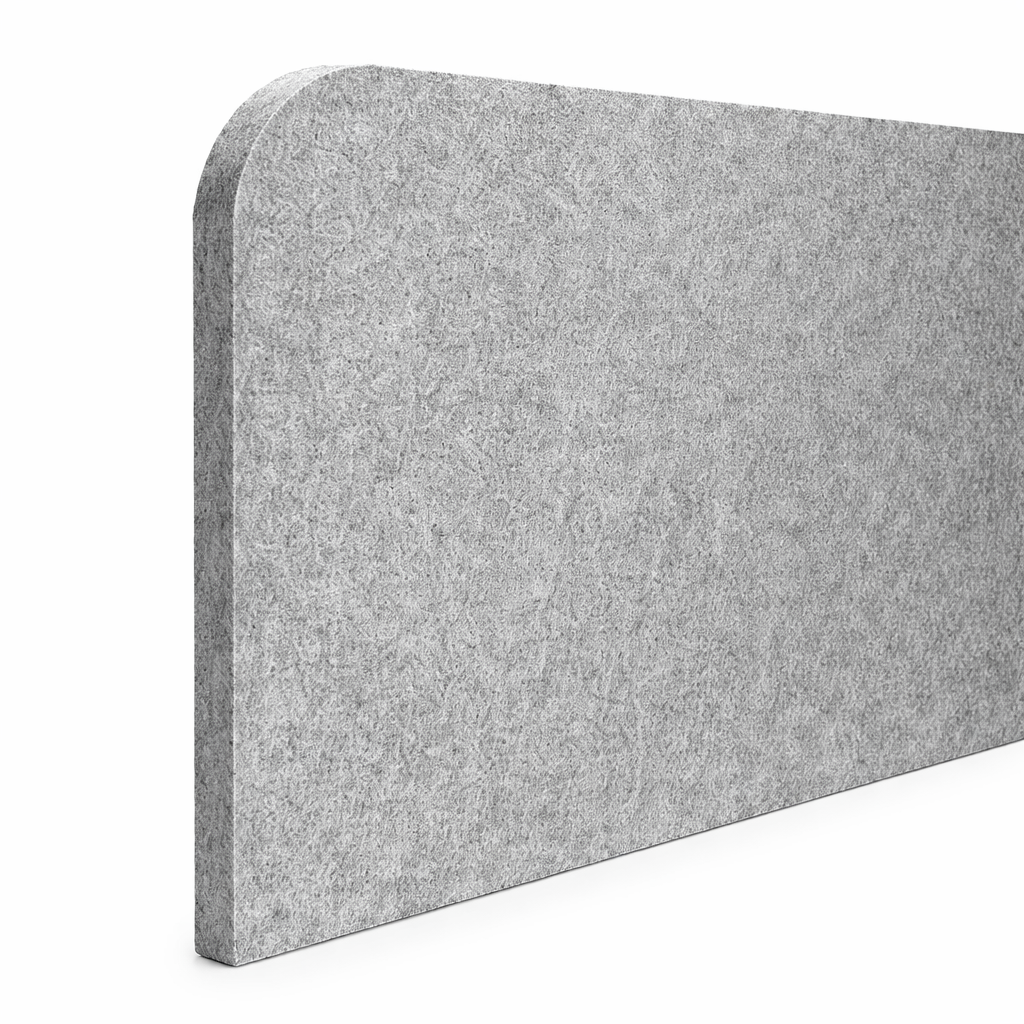

ÜNO Concept 12

12 mm0.45

Open-plan offices, educational spaces

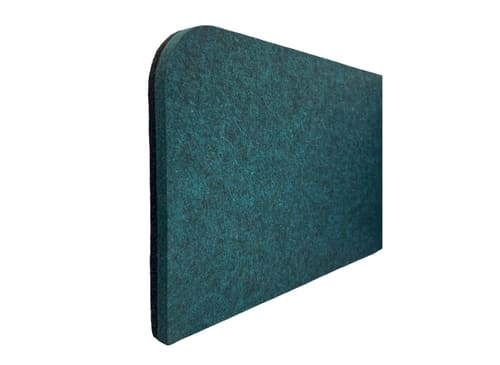

ÜNO Acoustic 15

15 mm0.55

Hospitality, retail environments

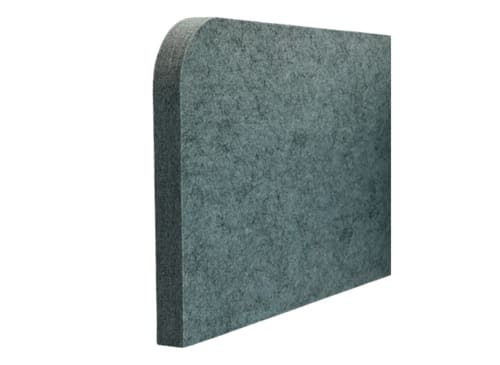

ÜNO Concept 18

18 mm0.60

Conference rooms, healthcare corridors

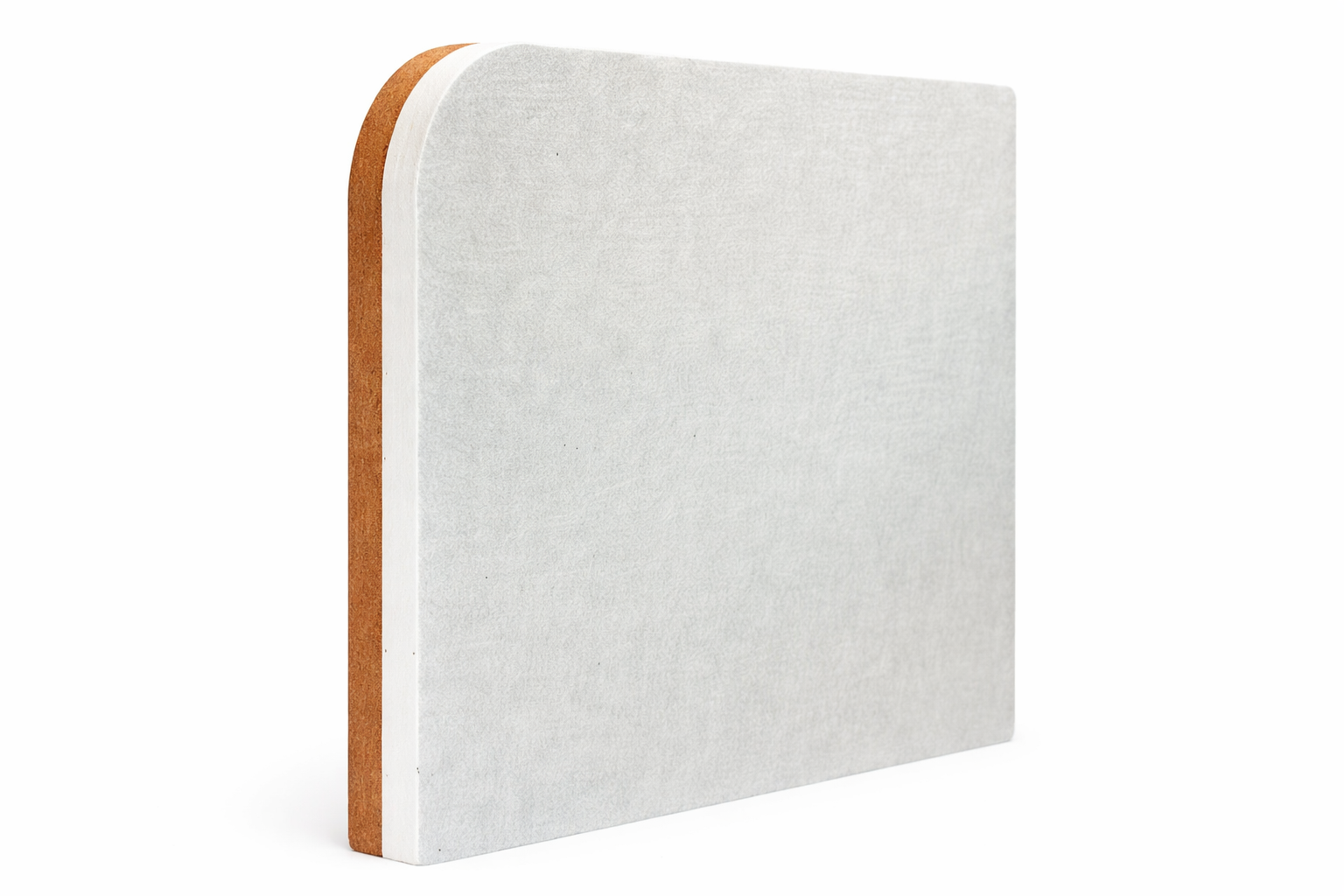

ÜNO Concept 18T2

18 mm0.65

High-performance walls, dual-layer construction

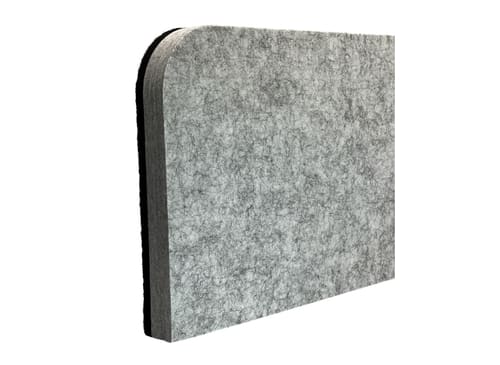

ÜNO Acoustic 24

24 mm0.85

Recording studios, auditoriums

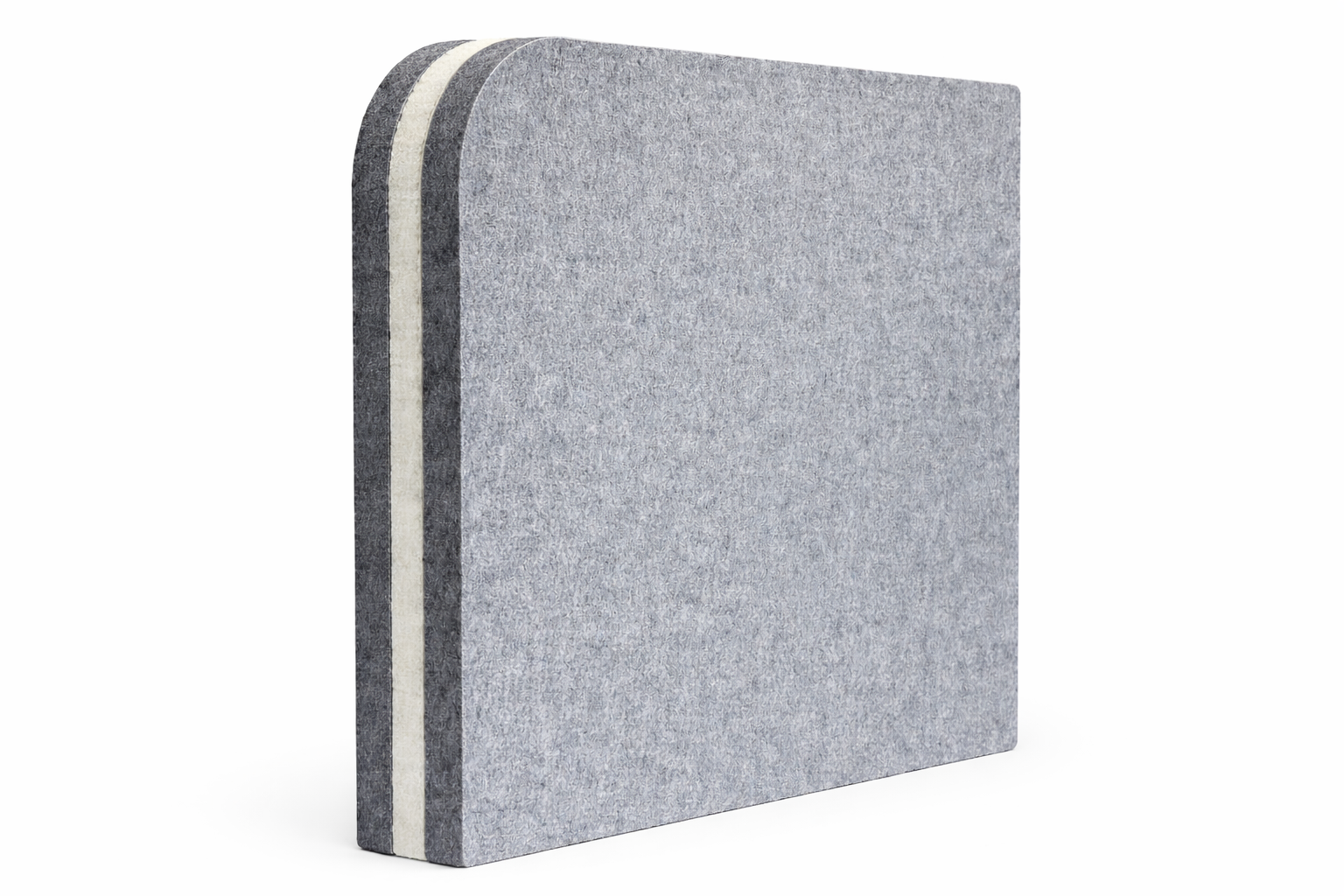

ÜNO Acoustic 24C

24 mm1.05*

Suspended ceiling baffles

* NRC 1.05 when suspended, both faces exposed.

ÜNO Board — Product Specification Sheet

Typical Applications

Open-plan offices

Educational facilities

Healthcare interiors

Hospitality & retail

Recording studios

Residential spaces

Configurations

Product	Thickness	Max. Sheet	NRC	Susp. NRC
ÜNO Concept 9	9 mm	1219 × 2438 mm	0.40	0.65
ÜNO Concept 12	12 mm	1219 × 2438 mm	0.45	0.75
ÜNO Concept 18/18T2	18 mm	1200 × 2400 mm	0.60	0.95
ÜNO Acoustic 15	15 mm	1200 × 2400 mm	0.55	—
ÜNO Acoustic 24	24 mm	1200 × 2400 mm	0.85	—
ÜNO Acoustic 24C	24 mm	1200 × 2400 mm	1.00	1.05*

* NRC 1.05 when suspended, both faces exposed.

Absorption Coefficients by Frequency (ASTM C423)

Product	125 Hz	250 Hz	500 Hz	1 000 Hz	2 000 Hz	4 000 Hz	NRC
ÜNO Concept 9	0.01	0.07	0.16	0.38	0.68	0.89	0.40
ÜNO Concept 12	0.02	0.09	0.19	0.42	0.72	0.92	0.45
ÜNO Concept 18	0.03	0.11	0.30	0.65	0.85	0.97	0.60
ÜNO Acoustic 15	0.03	0.11	0.24	0.58	0.79	0.95	0.55
ÜNO Acoustic 24	0.06	0.24	0.65	0.95	0.99	1.00	0.85
ÜNO Acoustic 24C	0.08	0.32	0.85	1.05	1.05	1.05	1.05*

* NRC 1.05 when suspended, both faces exposed. Wall-mounted installation. Data for representative configurations.

Certifications & Standards

Fire rating	CAN UL S.102 — Flame 10 · Smoke 155
VOC emissions	CDPH Standard Method V1.2, 2017
Chemical safety	RoHS Compliant / REACH SVHC Clear
Third-party testing	Intertek, Normal Testing & Certification (SGS)
Acoustic standard	ASTM C423
Warranty	5 years

Physical Properties

Standard sheet	1200 × 2400 mm / 1219 × 2438 mm
Custom cutting	Factory cut to any dimension
Surface	Felt — smooth or textured (variable depth v-grooves)
Density	~200 kg/m³ (varies by thickness)
Colour palette	50+ designer colours

Installation Notes

Direct adhesive — use compatible PET-safe adhesive
Mechanical fasteners — concealed clips (not available on 9 mm and 12 mm), or visible JCN screws

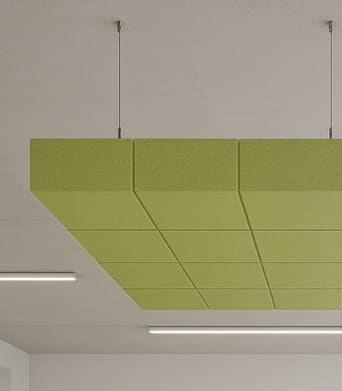

Suspended / baffles — 24C configuration optimised for ceiling suspension
Oversized panels achievable by joining with apparent joint

Sustainability

Up to 70% post-consumer recycled PET content
Product and packaging 100% recyclable
Zero volatile content at 21°C
No added formaldehyde or harmful substances
Contributes to LEED v4/v4.1 credits (MR, IEQ categories)

Contact & Specification Support

Email	info@canacoustics.com
Phone	1.888.353.7599
Address	2350 46th Avenue, Lachine, Quebec, H8T 2P3
Web	www.canacoustics.com

Master Aesthetics and Acoustics in Design.

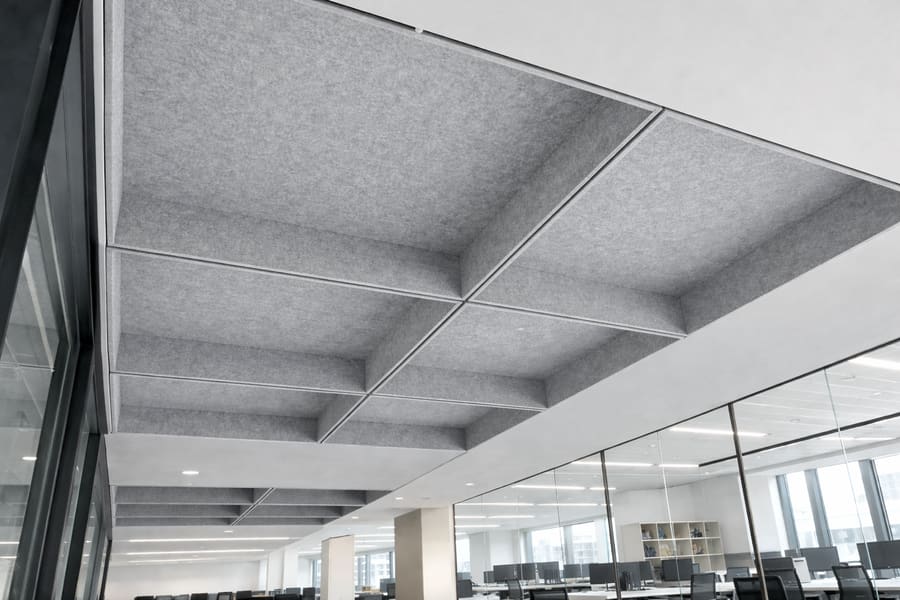

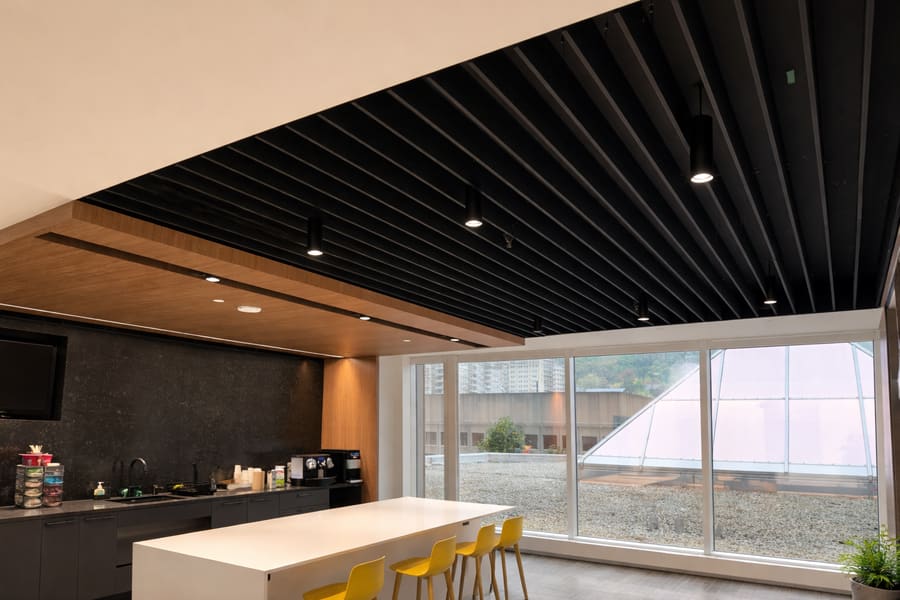

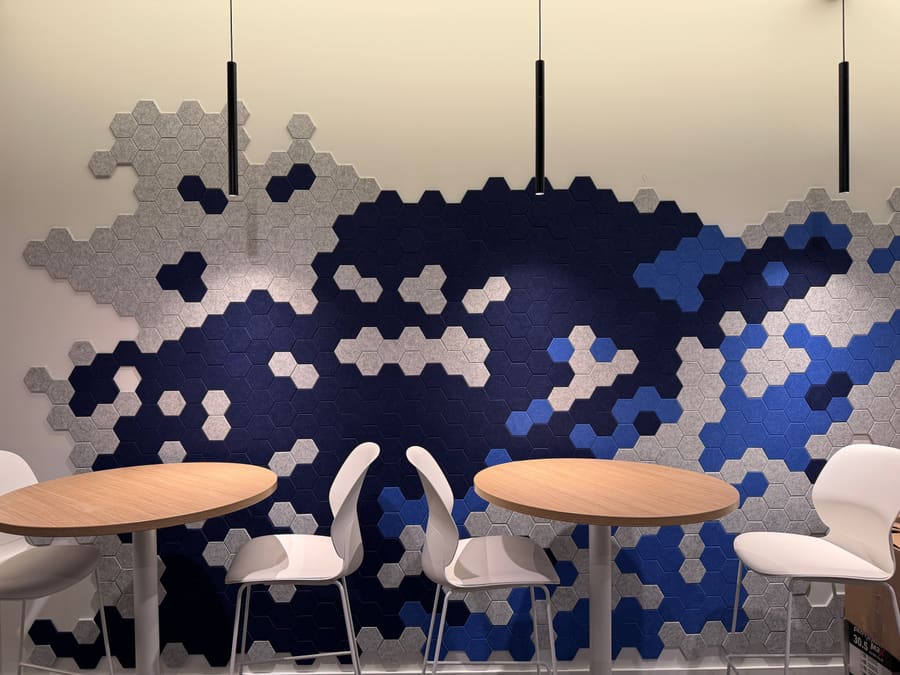

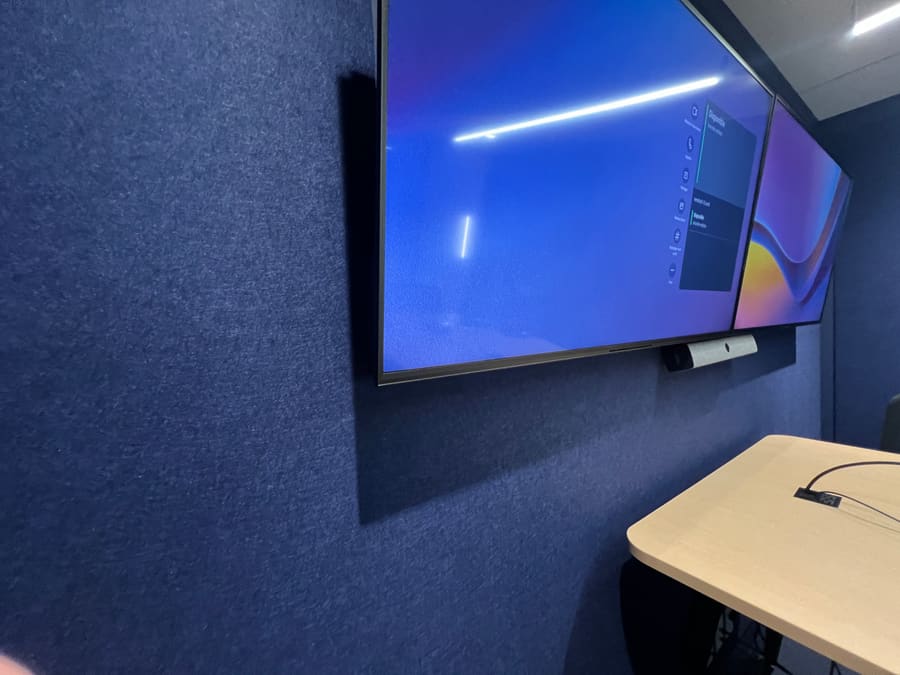

ÜNO Board is at the core of many Canacoustics products — a 100% PET acoustic panel engineered to perform across a wide range of applications, from flat wall installations to complex suspended ceiling systems.

Each product in our family builds on the same sustainable, high-performance felt — shaped, suspended, and finished differently to solve unique acoustic and design challenges.
